As a prominent Penstock Gates Manufacturer in Kolkata, IMAC Engineering supplies robust penstock gates that meet rigorous standards for hydraulic controls in treatment systems. Penstock gates, often used interchangeably with sluice gates in engineering practice, are engineered to resist hydrostatic pressure while offering dependable isolation when required for maintenance or emergency shut-offs. These gates are essential in sectors like wastewater management, industrial effluent handling, irrigation schemes, and power generation facilities, where controlling the inflow and outflow of water directly impacts process stability and regulatory compliance. The quality and customization capabilities of a trusted Penstock Gates Manufacturer in Kolkata such as IMAC Engineering ensure that every installation is optimized for performance, longevity, and reduced leakage under operational loads.



In water treatment plant applications, the reliability of Sluice Gates Manufacturer in Kolkata like IMAC Engineering becomes especially evident. Water and wastewater treatment processes depend on accurate flow regulation to manage stages such as sedimentation, filtration, clarification, and discharge. Properly designed sluice gates provide operators with the ability to adjust flow rates precisely, effectively isolate sections of a plant for maintenance, and maintain consistent levels within clarifiers and distribution channels. Without well-fabricated gates from a reputable Sluice Gates Manufacturer in Kolkata, systems may suffer from inefficient flow profiles, higher leakage rates, and increased downtime—issues that can escalate operational costs and compromise treatment outcomes.





Beyond municipal treatment facilities, industries that rely on steam generation, cooling water circuits, and effluent treatment also benefit significantly from solutions provided by a quality Penstock Gates Manufacturer in Kolkata. IMAC Engineering’s penstock and sluice gate offerings are engineered for compatibility with a wide range of industrial requirements, including chemical plants, pharmaceutical units, food & beverage processing, and heavy manufacturing sectors. These gates are designed with materials and sealing technologies that stand up to corrosive media, thermal variations, and high-cycle operations, ensuring reliable isolation and ease of actuation whether manual or automated. By choosing an experienced Sluice Gates Manufacturer in Kolkata, industries can secure durable water control solutions that support robust process control while complying with environmental standards and safety regulations.

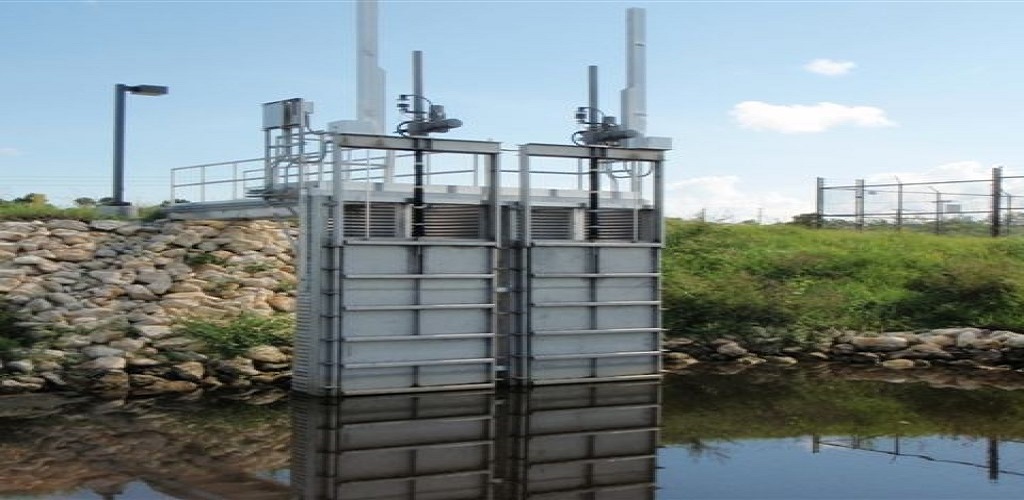

Penstock Gates Manufacturer in Kolkata

Key Features of Sluice Gates / Penstock / Open Channel Gates

1. Heavy-Duty Construction
Manufactured using high-grade materials such as Cast Iron (CI), Ductile Iron (DI), Stainless Steel (SS304/SS316), or Mild Steel (MS) to ensure durability and long service life even under harsh operating conditions.

2. Leak-Proof Sealing System
Equipped with precision-machined sealing faces and resilient rubber seals to provide minimal leakage and tight shut-off performance under hydrostatic pressure.

3. Corrosion-Resistant Coating
Epoxy coating or specialized surface treatment protects the gate from corrosion, chemical exposure, and environmental damage, making it ideal for wastewater and effluent applications.

4. Suitable for Open Channel & Wall Mounting
Designed for installation in open channels, wall-mounted structures, or embedded in concrete channels for versatile site applications.

5. Manual or Automated Operation
Available with handwheel operation, electric actuator, pneumatic actuator, or hydraulic actuator for easy and efficient flow control.

6. Bi-Directional Flow Capability
Can withstand pressure from both upstream and downstream sides, depending on design requirements.

7. Smooth Sliding Mechanism
Machined guide channels and stainless steel spindles ensure smooth and easy gate movement with low operating torque.

8. Custom Size & Design Options
Manufactured as per site specifications to suit various flow rates, pressure conditions, and channel dimensions.

9. Low Maintenance Requirement
Simple mechanical design with durable components reduces maintenance frequency and operational downtime.

10. High Structural Strength
Designed to handle high water head pressure without deformation, ensuring long-term structural integrity.

Sluice Gates / Penstock / Open Channel Gates – Technical Specifications

The specifications of Sluice Gates / Penstock Gates / Open Channel Gates are designed to meet the demanding requirements of water treatment plants, wastewater facilities, irrigation systems, and industrial applications. These gates are engineered for durability, tight sealing, and reliable performance under varying hydraulic conditions. Below are the commonly followed technical specifications:



1. Material of Construction

• Frame & Gate Leaf: Cast Iron (CI), Ductile Iron (DI), Stainless Steel (SS304 / SS316), or Mild Steel (MS)

• Spindle / Stem: Stainless Steel (SS304 / SS316)

• Seating Faces: Stainless Steel / Bronze

• Seals: EPDM / Neoprene / Nitrile Rubber

Material selection depends on application type, fluid characteristics, and corrosion exposure.



2. Size Range

• Available from 150 mm x 150 mm up to 3000 mm x 3000 mm or larger

• Custom sizes manufactured as per project requirement

• Suitable for square or rectangular openings



3. Mounting Type

• Wall Mounted (Flush Bottom Type)

• Channel Mounted

• Thimble Mounted

• Flanged End Type

Designed for open channels, tanks, and pipeline installations.



4. Pressure Rating

• Designed for unidirectional or bidirectional flow

• Suitable for water head ranging from 1 meter to 10 meters or more (as per design requirement)

• Engineered to withstand full seating and unseating head pressure



5. Operation Mechanism

• Manual Handwheel Operated

• Electric Actuator Operated

• Pneumatic Actuator Operated

• Hydraulic Actuator Operated

• Gear Operated (for large sizes)



6. Sealing & Leakage Standard

• Designed as per IS / AWWA / DIN standards (as required)

• Metal-to-metal or resilient sealing

• Minimal permissible leakage under rated pressure conditions



7. Surface Protection

• Fusion Bonded Epoxy Coating (minimum 250 microns)

• Hot Dip Galvanized Finish (for MS gates)

• Anti-corrosive paint system suitable for wastewater environments



8. Temperature & Application Range

• Suitable for clean water, wastewater, effluent, stormwater, and industrial fluids

• Operating temperature generally up to 80°C (custom design available for higher temperature)



9. Accessories (Optional)

• Extension spindle

• Floor stands

• Guide rails

• Limit switches

• Position indicators



These specifications ensure that Sluice Gates / Penstock / Open Channel Gates provide reliable flow control, structural strength, and long-term operational efficiency in water treatment plants and industrial facilities. If you need this customized with keywords like Sluice Gates Manufacturer in Kolkata or Penstock Gates Manufacturer in Kolkata, I can prepare an SEO-focused version as well.
